front view of stool and chair

Front View: chair & stool

model sitting on stool

Stool Perspective

ContourChair

Team Members:

Stephen Chun & Jason Glionna

Contour Chair is designed to provide younger children with an easily buildable chair that can be converted into a stool. The simplistic yet intricate form is designed to fit two chairs on one 3/4” thick plywood sheet, and is brought to life via a CNC machine. The chair has a large focus on comfort and ergonomics designed through the gradual change in depth of the base and backing of the seat. Each piece can easily slot into the fiction fit connectors to maintain its shape.

Location: 325 Church Street, Toronto

Project Type: Academic

Date: Oct. 2017 - Nov. 2017

chair made out of plywood and cut on a CNC - easily constructed

Chair Perspective

stool made out of plywood and cut on a CNC - easily constructed

Stool Perspective

up-close view of contours that provide the person with comfort

Contour Component

close-up view showing the assembly underneath the stool

Connection Detail

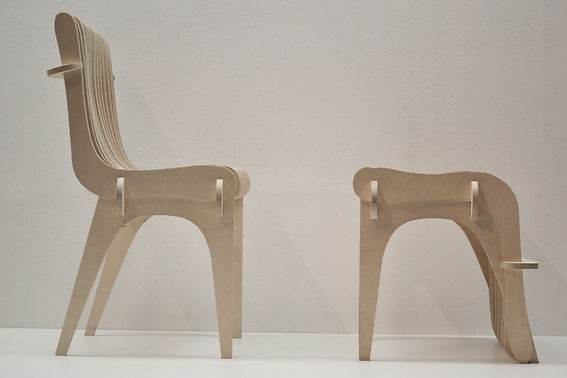

side view of chair and stool

Side View: chair & stool

instruction manuel for the construction of the chair and stool

Assembly Process

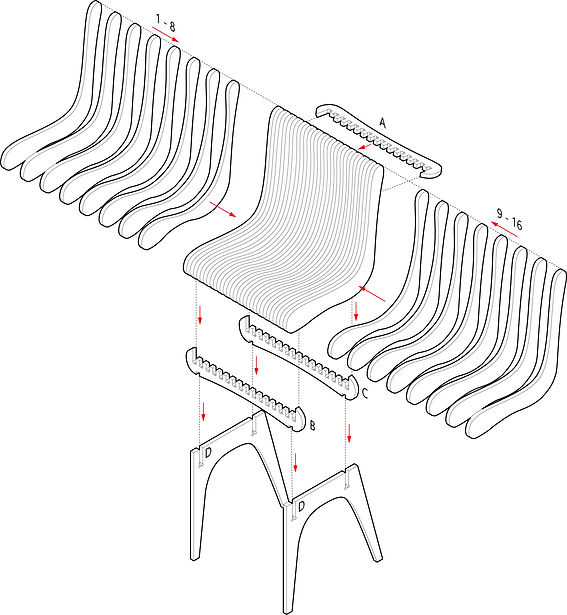

exploded axonometric showing individual pieces of the chair

Exploded Axonometric

individual pieces demonstrating the chair's simplicity

Components
